Aprilia Tuareg 660 Stage 2 Airbox Kit Installation Guide

Thanks for purchasing our Stage 2 Airbox Kit for Aprilia Tuareg 660 (cod. ASPS2CTUA)!

Step A:
Remove the seat, remove the tank cap, and place a rag in the tank opening to avoid dropping objects in.

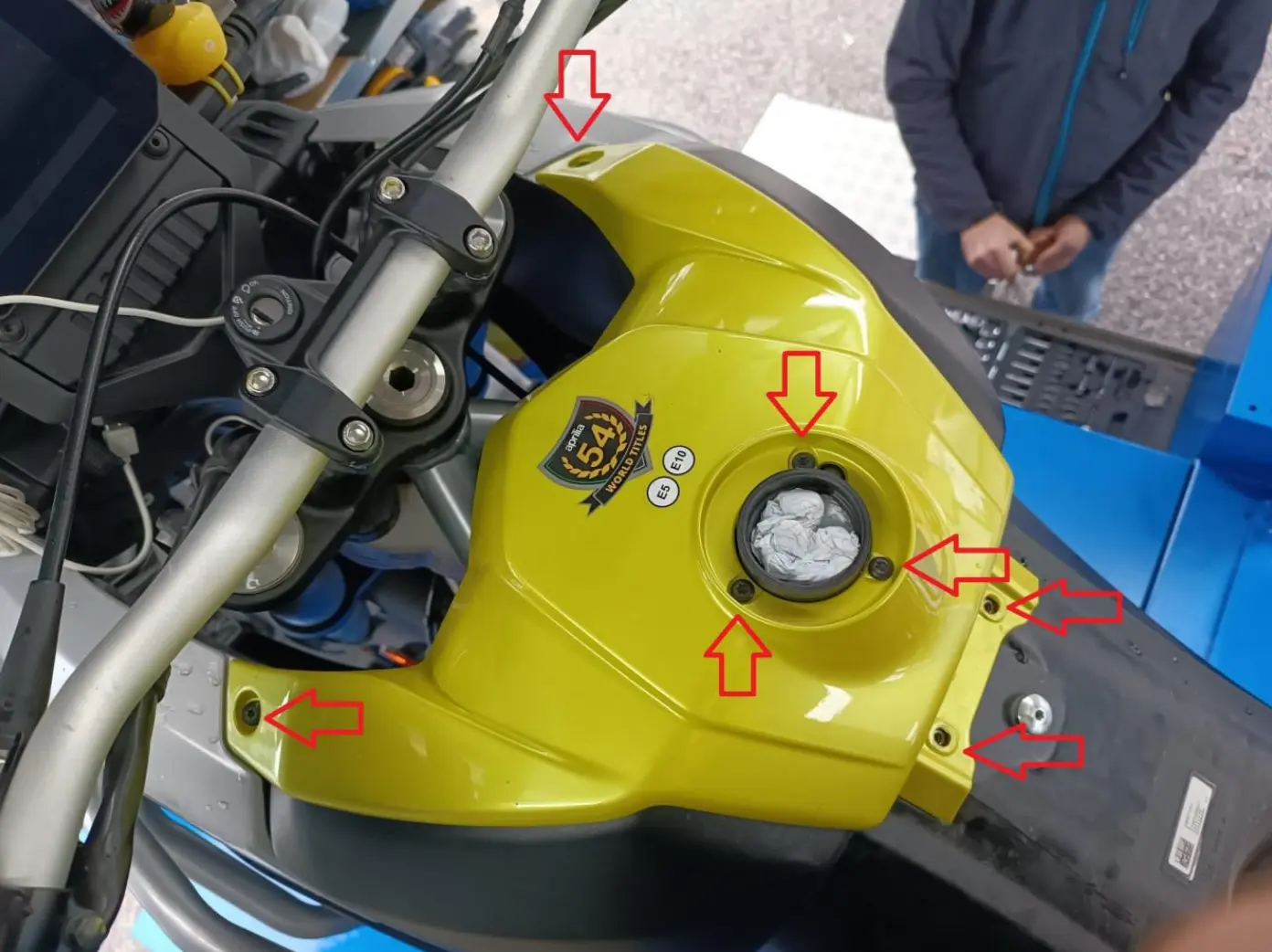

Undo the 7 torx head screws marked with the red arrows in the picture below, and remove the tank cover.
Step B:

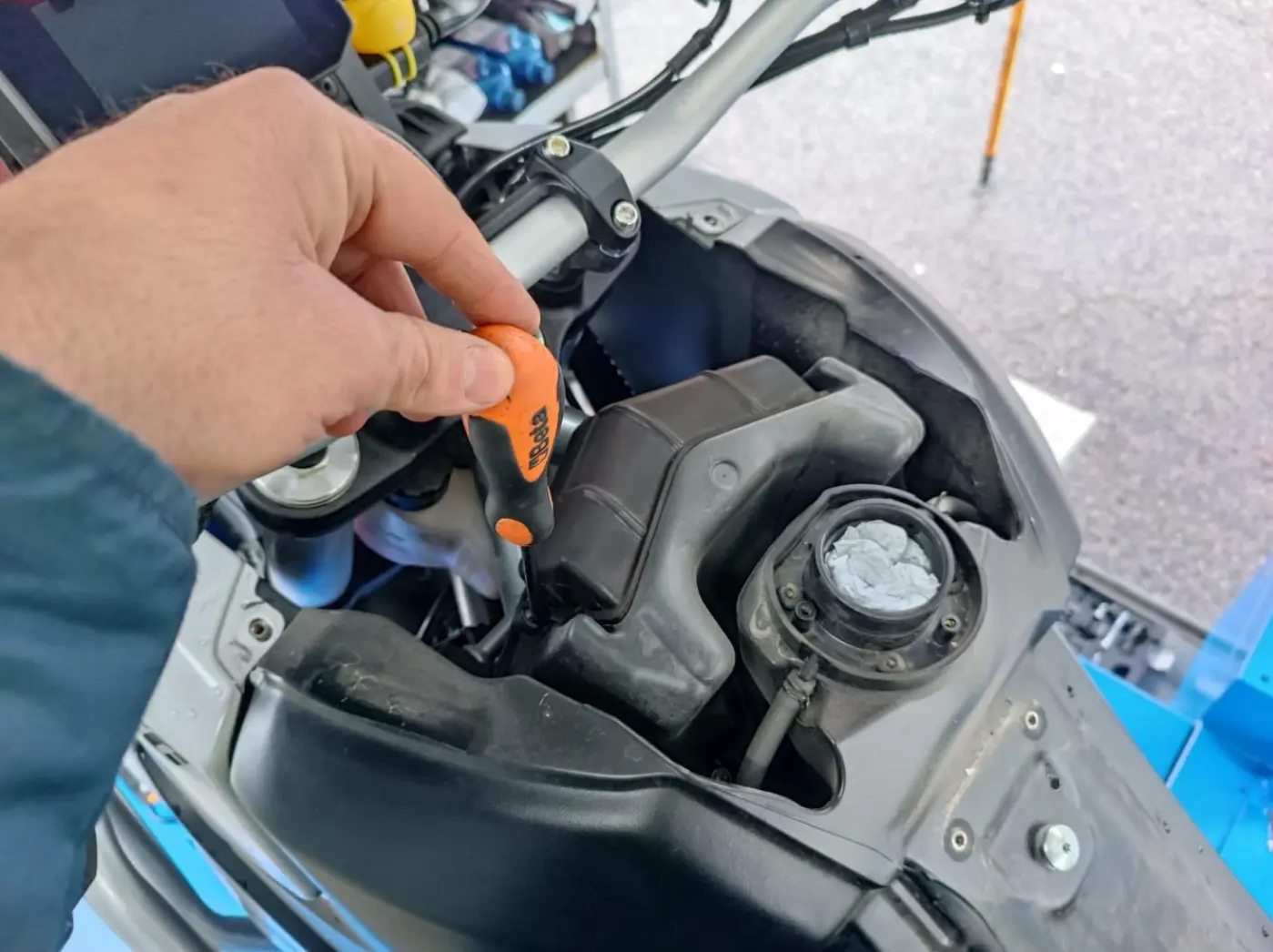

Remove the OEM airbox air intake undoing the 4 Phillips screws at its corners.
Step C:

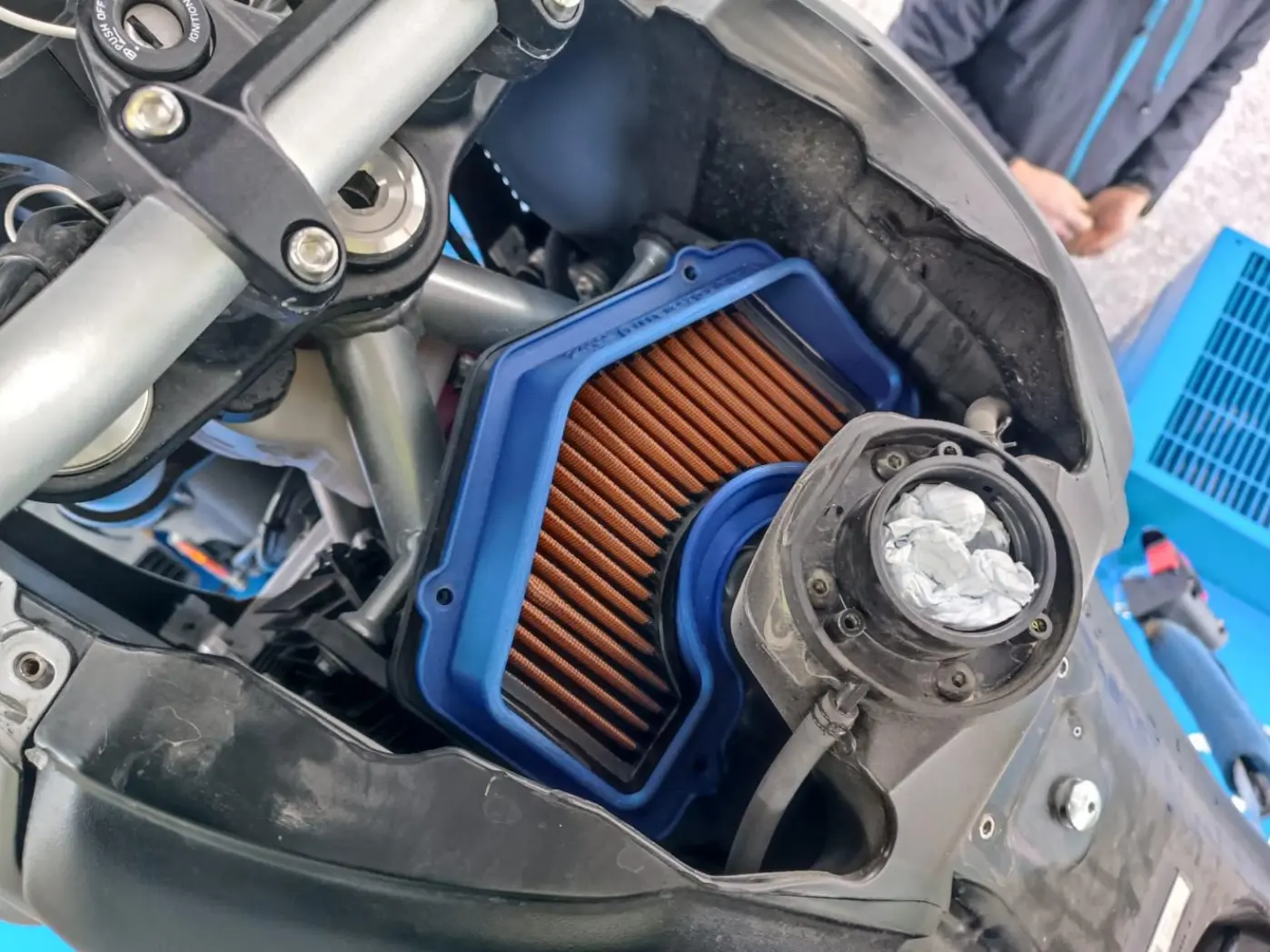

Reuse OEM screws to fit the Stage 2 filter frame.
⚠️ CAUTION:
Take great care to do not drop the rear screws inside the airbox or engine area!
Step D:
Install the appropriate UpMap “AIRBOX” map using the supplied map discount coupon (UpMap T800 sold separately).

Attention:

It’s a race product to be used in closed circuits only.
